MF115
  • MF115
Bearing Type Ball
Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Open

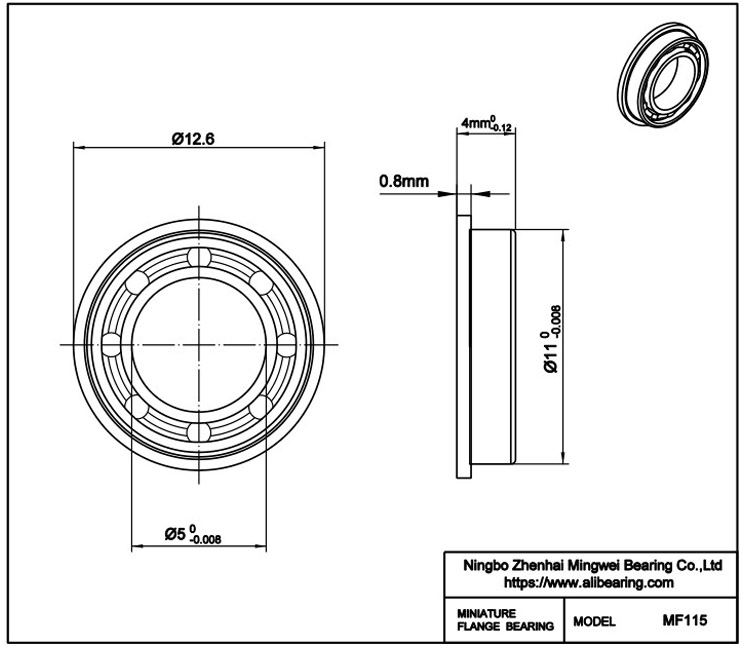

Model MF115
Bore Dia. (d)
5mm
Bore Dia. Tolerance
-0.008mm to 0
Outer Dia. (D)
11mm
Outer Dia. Tolerance
-0.008mm to 0
Width (B)
4mm
Width Tolerance -0.12mm to 0
Flange OD 12.5mm
Flange Width 0.8mm
Ring Material
Gcr15 | 52100 Chrome steel
Ball Material Gcr15 | 52100 Chrome steel
Cage Material Gcr15 | 52100 Chrome steel
Shield Material Gcr15 | 52100 Chrome steel
Dynamic Load Rating (Cr) (N)
716
Static Load Rating (Cor) (N) 282
Max Speed (Grease) (X1000 RPM)
45
Max Speed (Oil) (X1000 RPM)  53
Temperature Range
-30 to 110 ℃
Precision Grade P0 | ABEC-1
Radial Clearance Grade C0
Radial Clearance
0.002mm to 0.013mm
Weight
0.8g
