Current location：Home > Thrust Ball Bearing > F10-18M

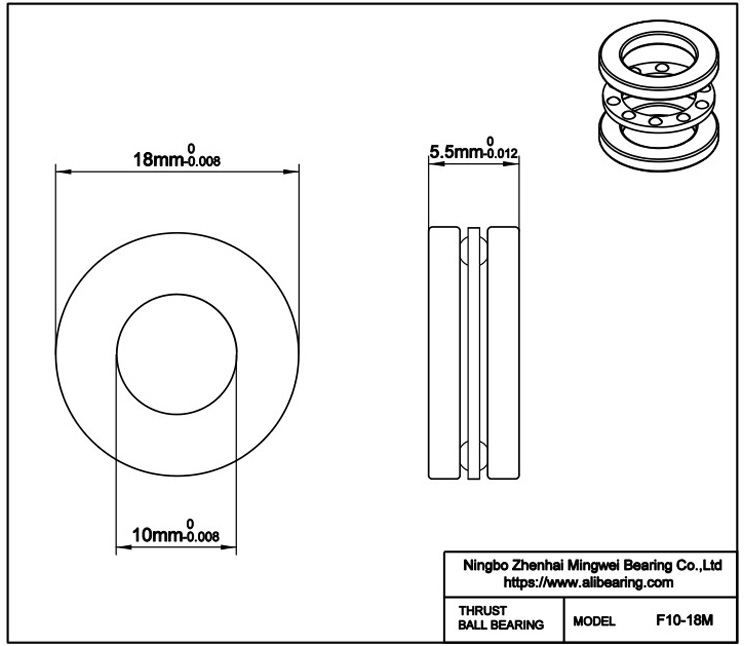

F10-18M
  • F10-18M
Bearing Type Ball
Load Direction Axle
Seal Type Open
Grooved With flat raceway
Model F10-18M
Bore Dia (d)
 10mm
Bore Dia Tolerance
 -0.008mm to 0
Outer Dia (D)
 18mm
Outer Dia Tolerance
 -0.008mm to 0
Height 5.5mm
Height Tolerance
 -0.12mm to 0
Washer Material Gcr15 | 52100 Chrome steel
Ball Material Gcr15 | 52100 Chrome steel
Cage Material Bronze
Dynamic Load Rating (Cr) (N)
 2230
Static Load Rating (Cor) (N) 2721
Max Speed (Grease) (X1000 RPM) 2.5
Max Speed (Oil) (X1000 RPM)  4.5
Temperature Range
 -30℃ to 110 ℃
Weight
 5.4g


Request a Quote
  • *
  • *
  • *
